The DHO900 series is RIGOL’s new launched high-performance economical digital oscilloscope. Though compact in design, it has superior performance. It features a capture rate up to 1,000,000 wfms/s (in UltraAcquire Mode), 50 Mpts memory depth, 12 bits resolution, and low noise.

รายละเอียดทั่วไป (Feature)

  • Ultra-low noise floor, purer signal, never miss the small signals
  • Up to 12 bits resolution for all the models of this series
  • Max. analog bandwidth of 250 MHz, 4 analog channels
  • 16 digital channels (std.), logic probe required to be purchased if needed
  • Max. real-time sample rate of 1.25 GSa/s
  • Max. memory depth of 50 Mpts
  • Vertical sensitivity range: 200 μV/div to 10 V/di
  • Max. capture rate of 1,000,000 wfms/s (in UltraAcquire mode)
  • Digital phosphor display with real-time 256-level intensity grading
  • Integrates the AFG function, bode plot analysis, histogram, digital signal analysis, and etc
  • Waveform search and navigation function allows you to debug the signal anomalies faster
  • 7″ (1024×600) capacitive multi-touch screen
  • Brand new Flex Knob brings user-friendly experience

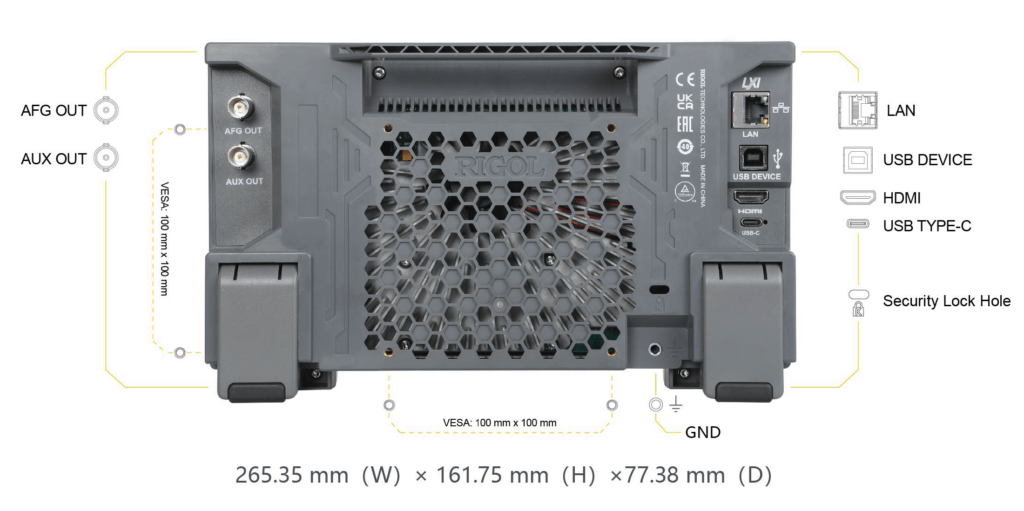

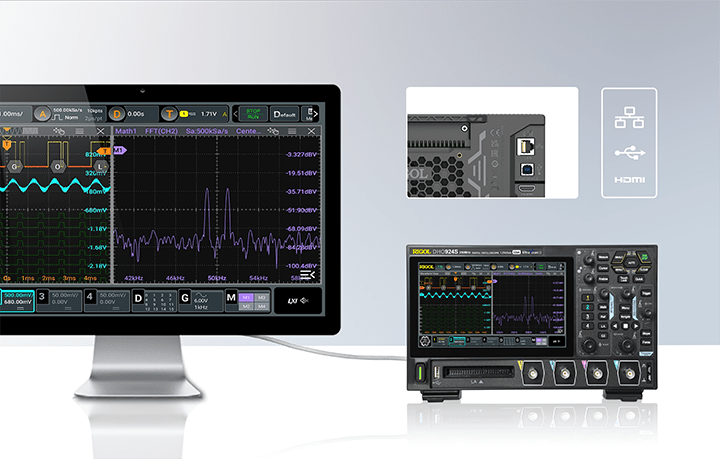

  • USB Device & Host, LAN, and HDMI interfaces
  • Novel and delicate industrial design, easy to operate
  • Unique online upgradeAnalog

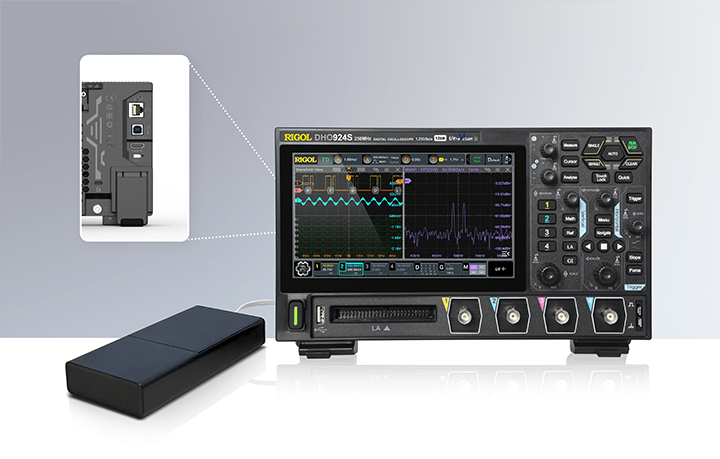

Power-ON by USB Type-C

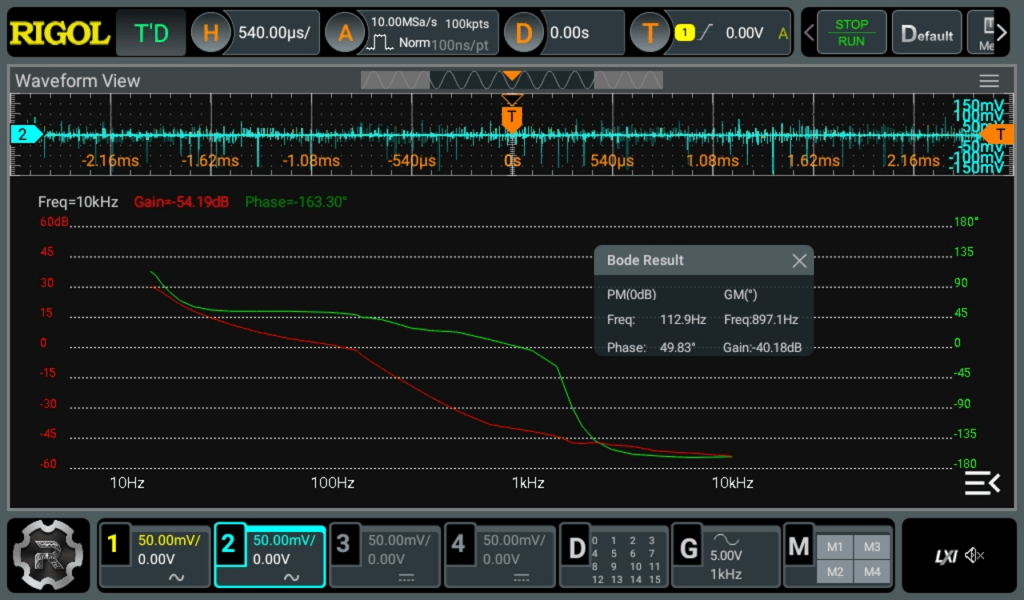

Bode Plot Analysis

The DHO900S series comes standard with Bode plot loop analysis function, effectively addressing switching power loop response analysis.

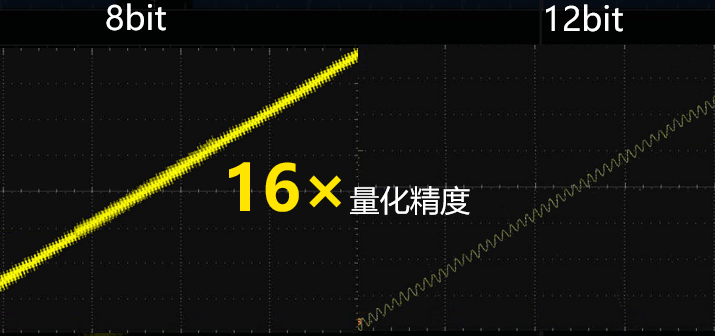

High-resolution 12-bit

12-bit vertical resolution with 4096 levels of quantization, 16 times the quantization levels of 8-bit, adept at handling small signal testing.

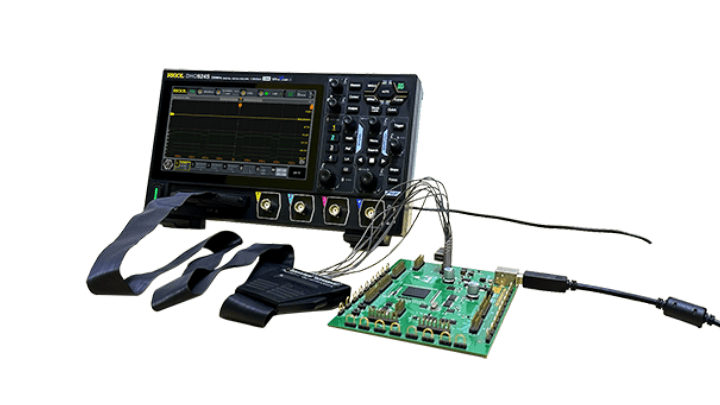

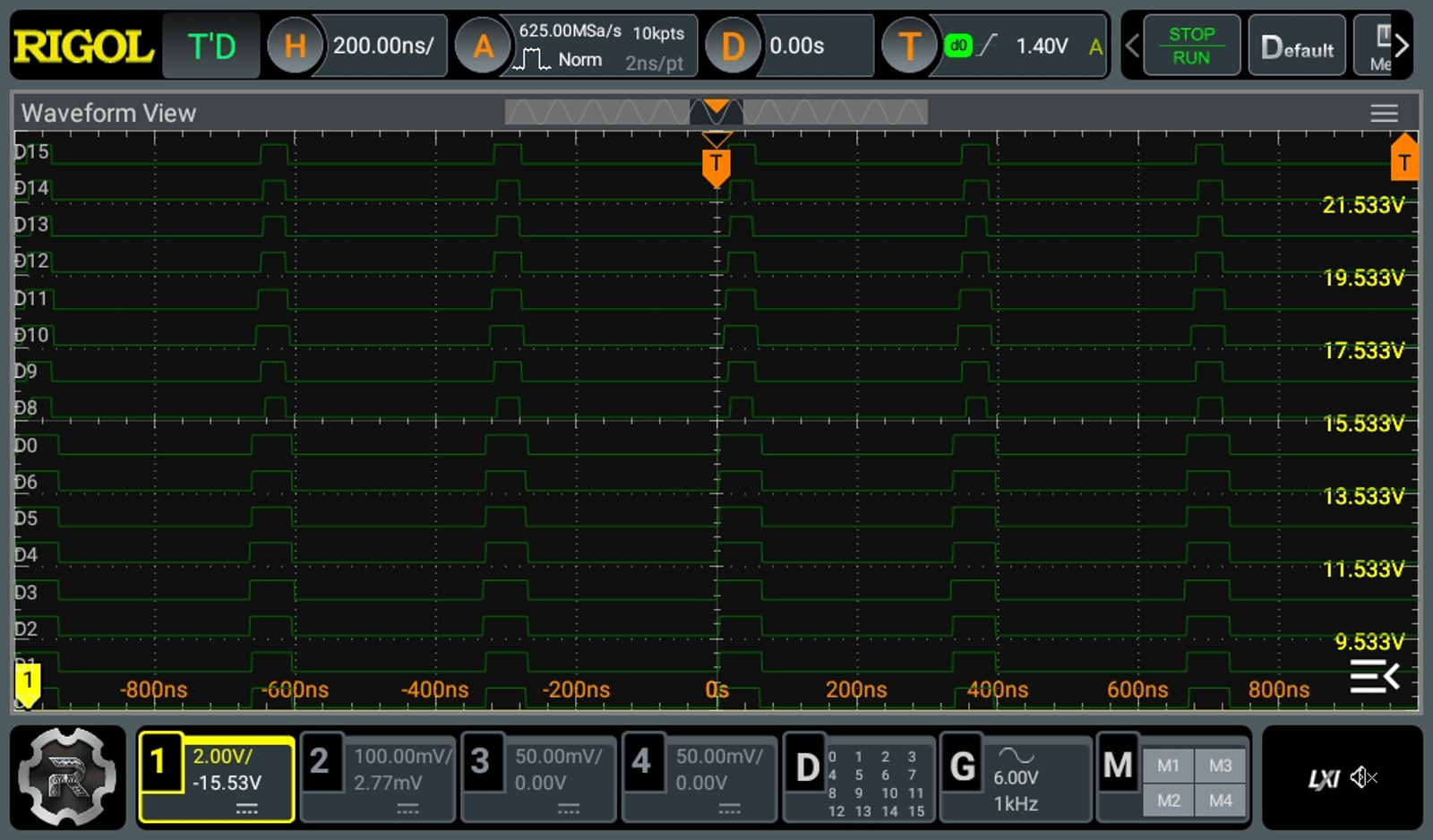

16CH Digital Channels (Probe is option)

The entire DHO900 series comes equipped with digital channels as standard, allowing digital signal analysis when paired with the PLA2216 logic analysis probe.

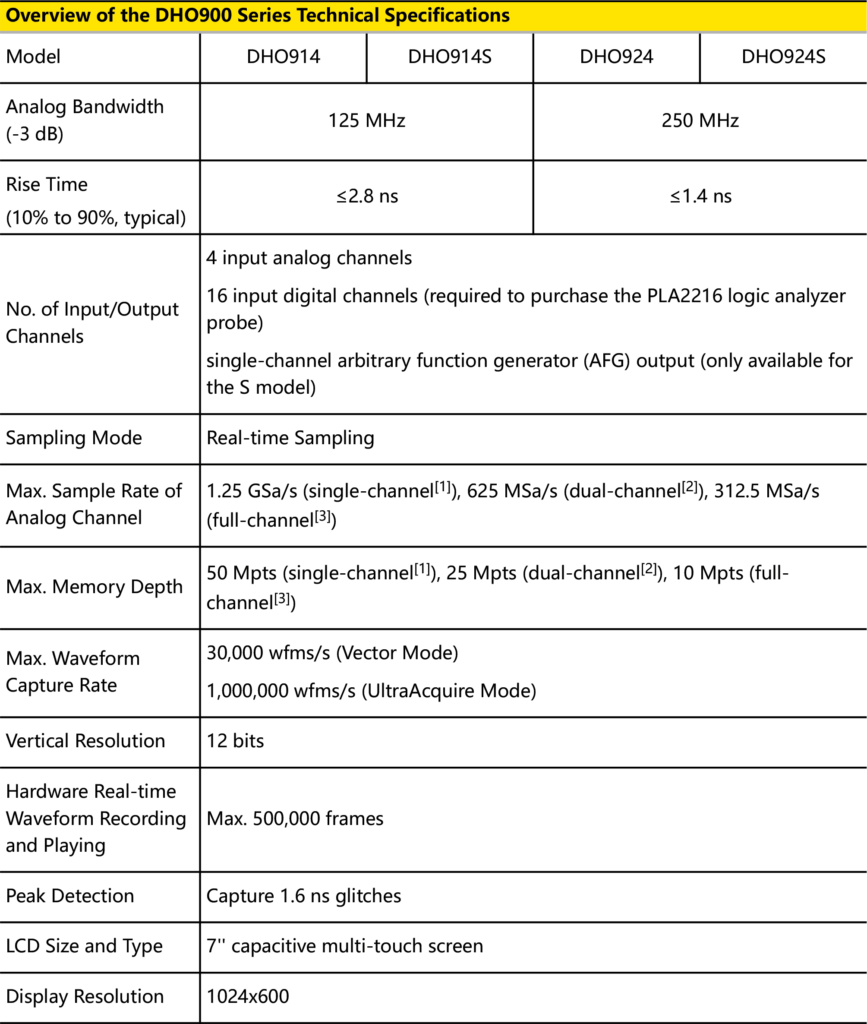

รายละเอียดทางเทคนิค (Overview Technical Specifications)

สิ่งที่มากับสินค้า (What's in the Box)

  • DHO900 Series : Digital Oscilloscope x 1 เครื่อง
  • สาย Passive Probe x 4 เส้น
  • USB Cable x 1 เส้น
  • Power Adapter x 1 ชุด
  • สายต่อ Ground x 1 เส้น

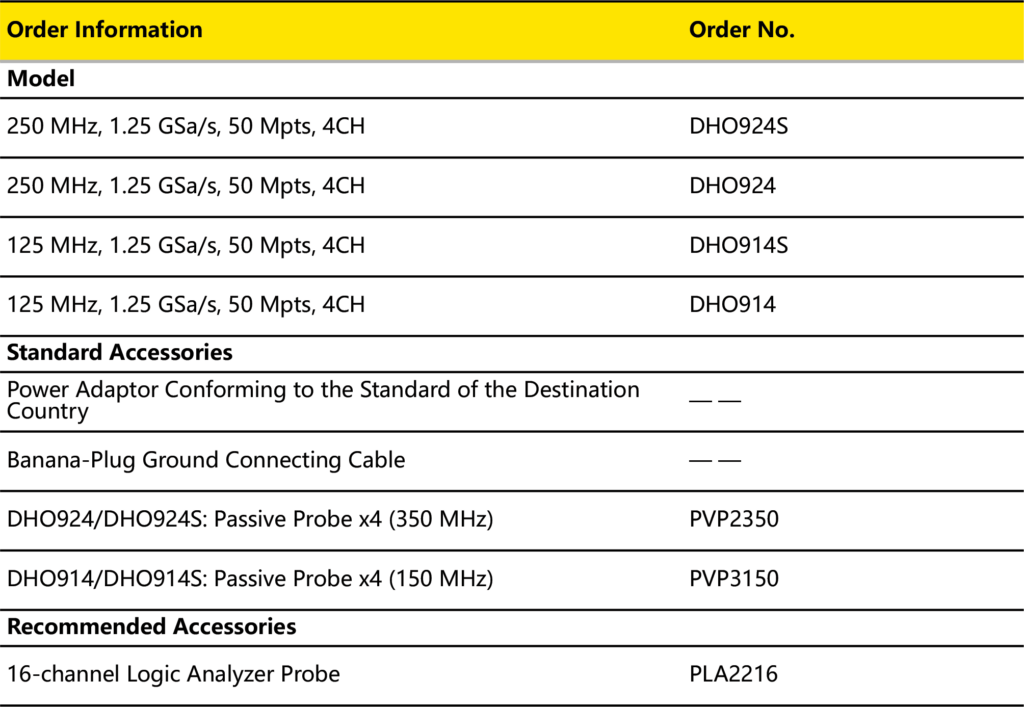

ตัวเลือกและอุปกรณ์เสริม (Option)


16-channel logic analyzer probe

RP1025D High voltage Differential Probe

BW: 25 MHz Max. voltage ≤ 1400 Vpp Compatibility: All models of RIGOL's digital oscilloscopes
